DESCRIPTION

Basic Info

Model NO.	PE400X600, PE500X750, PE600X900, PE750X1060,
Inlet Size	1000×1200mm
Condition	New
Warranty	One Year
After-sales Service	All The Time
Transport Package	Plastic Sheet
Specification	2600X2250X2650
Trademark	Shanky
Origin	China
HS Code	84749000
Production Capacity	100sets

Product Description

Product Brief Introduction

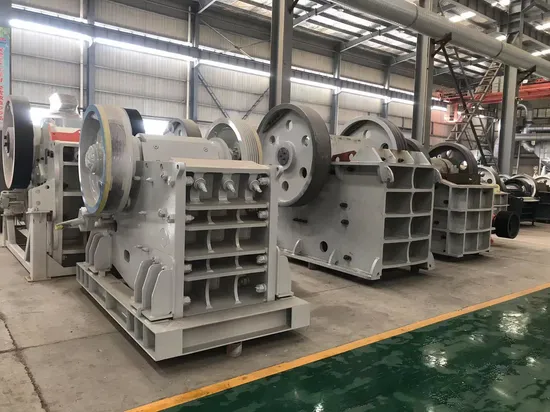

PE Jaw crusher is one of the most commonly used equipments in mining machinery. Jaw crusher is generally used for primary crushing, which has many advantages, such as high crushing ratio, high capacity, cubical final product size, simple structure, easy maintenance and so on. Large and medium-sized jaw crusher is one of the leading products of our company, we have reached the advanced world level in both technology and processing technic. Jaw crusher is widely used in construction, highway, railway, chemical industry, hydraulic power, metallurgical industry, mining industries, etc.

• Features
  Deep crushing cavity and high crushing ratio;

• Gasket type adjustment device for discharge hole
  Gasket type adjustment device for discharge hole, reliable and convenient, with large adjustment range and increase the flexibility of equipment.

• Centralized lubrication system, fast, safe, reliable and low maintenance.

• Simple structure, reliable work and low cost for operating.

• large adjustment range can meet the requirements of different users.

• Energy-saving and environmental friendly, little noise and dust;

• Spare parts are wearable and with long life service;

PE Jaw Crusher is used in primary and secondary crushing. The largest compression resistance of the material to be crushed is 320MPa. The jaw crusher is widely used in stone mining, metallurgy industry, building material, highway, railway, and chemical industry.

Technical Specificaitons

Model	Opening Size (mm)	Max. Feeding Size (mm)	Discharge Size (mm)	Capacity (t/h)	Power (KW)	Dimension (mm)
PE-250×400	400×250	200	20-50	5-20	15	1430×1310×1340
PE-400×600	600×400	350	40-100	15-60	30-37	1700×1732×1653
PE-500×750	500×750	425	50-100	40-110	45-55	2035×1921×2000
PE-600×900	900×600	480	65-160	90-180	55-75	2290×2206×2370
PE-750×1060	1060×750	630	80-140	110-320	90-110	2655×2302×3110
PE-900×1200	900×1200	750	95-165	220-450	110-132	3800×3166×3045
PE-1200×1500	1200×1500	1020	150-300	400-800	160-220	3800×3166×3045
PEX-150×250	150×250	125	10-40	1-3	5.5	896×745×935
PEX-150×750	150×750	125	18-48	5-16	15	896×745×935
PEX-250×750	750×250	210	25-60	15-30	22-30	1667×1545×1020
PEX-250×1000	1000×250	210	25-60	15-50	30-37	1550×1964×1380
PEX-250×1200	1200×250	210	25-60	20-60	37-45	2192×1900×1950

Working Site
